compact laser module
- HERTFORDSHIRE, UK, November 06, 2005 - Photonic Products is delighted to launch its economical new range of compact, 8mm diameter, laser diode modules for customers requiring a small laser module to be integrated into systems and handheld instrumentation where space is at a premium. Typical applications are targeting, industrial alignment such as pre-press plate alignment and laser alignment for label and wrapper cutting machinery, and medical applications such as patient positioning.
The laser modules measure just 25.5mm in length, with a diameter of only 8mm and are extremely efficient and reliable at an affordable price.
The 650nm laser diode modules produce an elliptical, collimated output beam of 3.5 x 1.5mm, with output powers of 0.9mW or 4.5mW. Operating voltage is from 3V to 6V DC at an operating current of 30mA typ, (0.9mW) or 40mA typ, (4.5mW). Beam divergence is less than 1mrad and operating temperature range is -10 degrees C to +50 degrees C.
The 635nm laser diode modules produce an elliptical, collimated output beam of 3.5 x 1.5mm, with output powers of 0.9mW or 4.0mW. Operating voltage is from 3V to 6V DC at an operating current of 30mA typ, (0.9mW) or 40mA typ, (4.0mW). Beam divergence is less than 1mrad and operating temperature range is -10 degrees C to +40 degrees C.

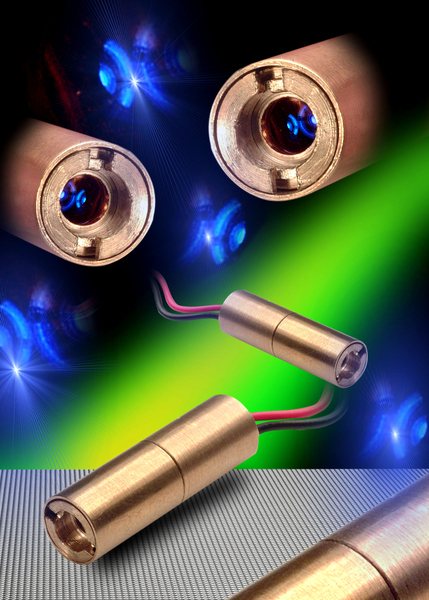

The laser modules consist of a brass housing, laser diode, drive circuit and adjustable collimating or focusing lens. The lens may be adjusted to produce either a collimated beam or focused spot.
For applications requiring electrical isolation of the laser module housing, a hard anodised aluminium housing version of this compact laser module is available.
Photonic Products was established in 1995 and has offices in the UK, USA and Germany. It is an ISO9001:2000 certified manufacturer of electro-optical sub-assemblies and innovative optoelectronic components based on semiconductor laser diode technology and also a specialist distributor of high performance industrial laser diodes, LEDs and precision optical lenses. It is a Queen's Award for International Enterprise winner.
